Controlling and separating lubricating oil from the refrigerant is a core factor determining equipment performance in industrial refrigeration systems. Currently, the new generation of Hitachi chiller air conditioners uses advanced cyclone (centrifugal) separation technology, offering many advantages over traditional filter-type oil separators. This article by U.P Tech will provide a detailed comparison of these two technologies to help you understand why Hitachi chiller systems are highly regarded for their energy efficiency and durability.

Operating principle of Hitachi centrifugal automatic chiller air conditioner with mechanical baffle

The Cyclone oil separator in Hitachi Chillers utilizes the principle of centrifugal force from a high-pressure vortex flow. The refrigerant and oil are introduced tangentially into a cylindrical chamber; the extremely strong centrifugal force pushes the heavier oil particles against the walls, where they are automatically recovered back into the storage tank. This design is optimally integrated into Hitachi's proprietary Cyclonic Economizer and expansion valve system.

Traditional filter-type oil separators use layers of filter mesh or porous material to retain oil particles as the mixture passes through. This mechanism is purely mechanical interception; the fluid flow is forced through the small gaps in the filter core to separate the oil.

Hitachi Chiller air conditioning system delivers efficient separation and minimal pressure loss

Thanks to its Cyclone centrifugal design with no obstruction materials, Hitachi Chiller air conditioners have an extremely smooth refrigerant flow, minimizing pressure and kinetic energy losses. The ability to separate the refrigerant oil to a high purity level enhances the supercooling effect of the refrigerant, thereby optimizing cooling capacity by up to 40% at partial load levels.

Traditional filters have filter cores made of barrier material that always create a certain pressure drop in the system, and over time, separation efficiency gradually decreases when the filter membrane becomes saturated with oil or clogged.

Maintenance costs and component lifespan of Hitachi Chiller air conditioning systems

The Hitachi Chiller system Cyclone has absolutely no mechanical moving parts or wear filters in the main separation unit. Combined with continuous oil recovery, the device completely eliminates the need for periodic flushing or filter replacement. This significantly reduces operating costs and extends the lifespan of the lubrication system.

Meanwhile, traditional filters require periodic replacement of the filter element due to dirt buildup and material aging. If not replaced promptly, dirty oil will enter the refrigeration cycle, reducing the heat exchange efficiency of the evaporator.

The Hitachi Chiller air conditioner offers optimal size and installation space

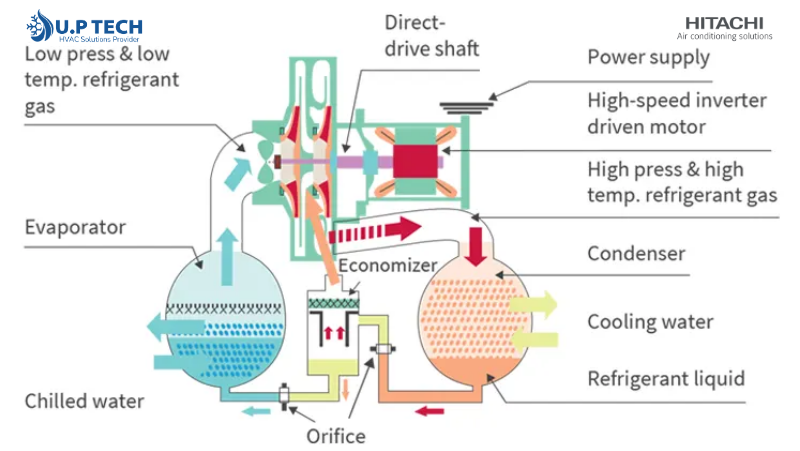

The application of Hitachi Chiller system Cyclonic, neatly integrated into a 2-stage compressor unit, significantly reduces the physical size of the entire system. The installation dimensions of the new Hitachi chiller models can be reduced by approximately 12.3% to 31% of floor space compared to models using older designs.

→ See more: Comparison of Hitachi centrifugal and screw chiller systems

Traditional filtration systems require bulky filter tanks and complex piping systems, increasing operational weight and taking up significant space in the technical room.

Criteria

Cyclone system on Hitachi Chiller

Traditional filters

Separation mechanism

High-pressure centrifugal force

Mechanical barrier

System pressure drop

Insignificant, the gas flow is smooth

Tall, increasing gradually over time

Component replacement

No periodic membrane replacement is required

The filter cartridge must be replaced periodically

Variable load performance

Maintains stability across all load ranges (10-100%)

Decreases as gas flow rate changes

Device dimensions

Ultra-compact, optimizing space by up to 31%

Bulky and heavy

Replacing outdated mechanical filters with advanced centrifugal cyclone separation technology is a groundbreaking step in Hitachi Chiller air conditioning systems. This solution not only ensures stable operation and top-tier energy efficiency but also minimizes maintenance costs for businesses. For modern buildings requiring durability and cost savings, Hitachi chiller systems equipped with cyclone separation units are undoubtedly a smart and effective long-term investment.
